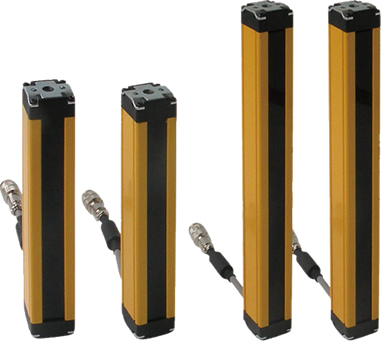

| Product model |
AS6E- |
AS6D- |
| Order number |
RE 109180 |
RE 109190 |
| Control output |
NPN
Load voltage: Max.30VDC
Load current: Max.200mA |
PNP
Load voltage: Max.30VDC
Load current: Max.200mA |
| Response time |
Max.20MS |
| Working voltage |
12-24VDC |
| Working current |
12-24VDC |
| Light source |
(Infrared modulator) |
| Number of light beams |
02-52=(02-04-06-08-10-12-14-16-18-20-22-24-26-28-30-32-34-36-38-40-44-48-52) |

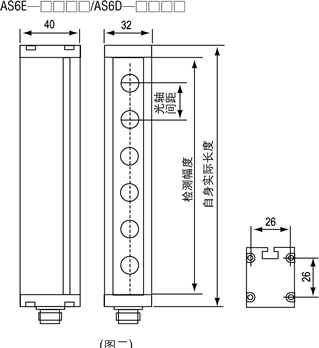

| Safety height (H) |
H=(Beam number-1) X Optical axis spacing (10mm, 20mm, 30mm, 40m, 80mm) |
| Grating type |
1: Opposite type (the unilateral controller comprises transmitter and receiver.) 2: Reflection type (reflection board) |
| Protection circuit |
Power source reverse connection protection; output-side overcurrent protection |
| Indicator lamp |
Action indicator lamp: Red LED |
| Insulation resistance |
Min.100M (500VDC) |
| Ambient temperature |
-10-50 ,storage-25-70 |
| Anti-interference |
+-240V square wave caused by jamming simulator (pulse width: 1us) |
| Vibration-proof |
Amplitude: 1.5mm; frequency: 10-55Hz 2 hours in X, Y, Z direction separately |
| Shock resistant |
3 times in X, Y, Z direction separately |
| Ambient brightness |
Sunlight: Max.11,000Lux Solar light: Max.3000Lux |
| Ambient humidity |
35-85%RH, Storage: 35-85%RH |
| Casing material |
High purity aluminum alloy |
| Connection method |
Provide 3m cable for aviation connector |
| Special prompts |
Note: Please confirm the beam number and optical axis spacing at the time of ordering.
For example, if the beam number is 06 and the optical axis spacing is 18, the model AS6E- is AS6E-0618. |
