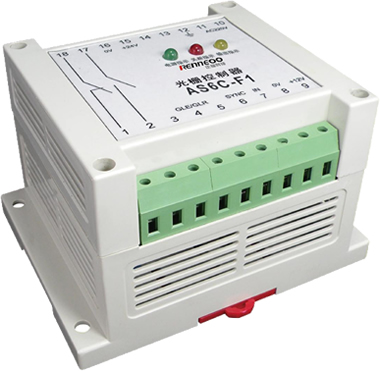

AS6C Safety grating controller

Products: Industrial sensor   View: 1761Frequency
 Feature

Outlaid, directly mounted inside the main mechanical equipment
Power: Max.15W
Self-inspection function
The signal output cable uses the aviation connector
Long service life: the number of relay output times is over 1 million times
Quantity of control safety grating sensor: 1 set
Technical Characteristics
Product model AS6C-F1
Order number RE 109200
Working voltage AC220V 50/60Hz or DC24V
Contact capacity AC220V 5A AC380V 3A
Indicator lamp Action indicator lamp: Red LED
Insulation resistance >500M (500VDC)
Ambient temperature -10-50,Storage: -25-70
Ambient humidity 35-85%RH, Storage: 35-85%RH
Casing material ABS
Connection method Provide 3m cable for the aviation connector

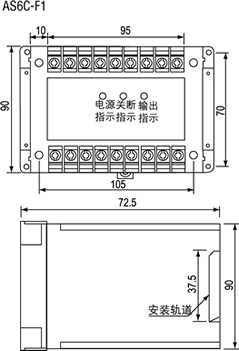

Appearance and Dimension(mm)
Appearance Size
