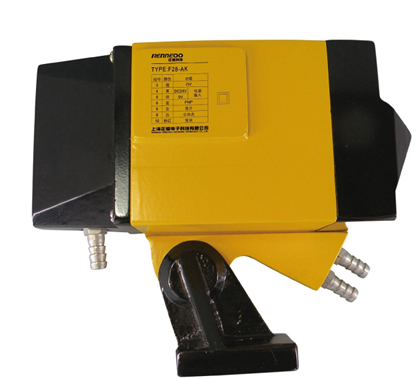

| Product model |
F28- |
| Order number |
RE 109280 |
| Working voltage |
AC220V AC110V 50/60Hz DC24V DC12V |
| Load current |
High output level with steel MAX:100mA |
| Detection distance |
Max: 0.2m-10m |
| Detection goal |
Detect 100 and above all opaque bodies |
| Detection temperature |
550-1400(Basic type);300-1400(Low temperature) |
| Contact capacity |
AC250V 5A DC30V 5A |
| Indicator lamp |
Switch on: LED green light on Signaling: LED red light on |
| Insulation resistance |
Min.20M (500VDC) |
| Working temperature |
-25-+70,Have air-cooled when : -25-+200 |
| Anti-optical interference |
10000LUX |
| Protection function |
DC input polarity protection, power level output short circuit and overload automatic protection |
| Regulation angle |
Horizontal: 360; vertical: -+45 |
| Casing shape |
Sweeping, water cooling, precision cast aluminum alloy |
| |
Control circuit Rectangular: Aluminum alloy |
Connotation of
product model
|
|
1 options: A: DC PNP B: DC NPN C: AC working voltage |
| 2 options: K: Normally open state output N: Normally closed state output E: Contact output |
| |
|
| Appearance & dimension |
|
 |
