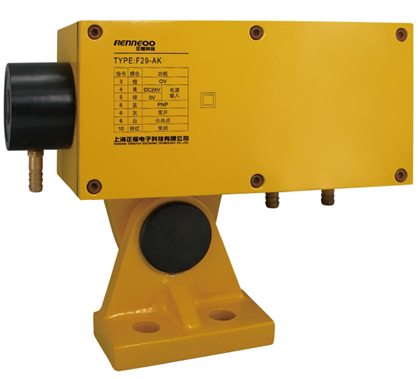

F29 Hot metal detector


Products: Industrial sensor   View: 2276Frequency
Feature
>Used in harsh environment (high temperature, moist, fog, etc.)
Position detection, counting and control of high temperature workpiece
Long service life: the number of relay output times exceeds 1 million times
Run continuously and reliably for a long time
Integrated design of power source, controller and output; installation convenience

Technical Characteristics
Product model F29-
Order number RE 109290
Working voltage AC220V AC110V 50/60Hz DC24V DC12V
Load current High output level with steel MAX:100mA
Detection distance Max: 0.2m-10m
Detection goal Detect 100 and above all opaque bodies
Detection temperature 550-1400(Basic type);300-1400(Low temperature)
Contact capacity AC250V 5A DC30V 5A
Indicator lamp Switch on: LED green light on Signaling: LED red light on
Insulation resistance Min.20M (500VDC)
Working temperature -25-+70,Have air-cooled when : -25-+200
Anti-optical interference 10000LUX
Protection function DC input polarity protection, power level output short circuit and overload automatic protection
Regulation angle Horizontal: 360; vertical: -+45
 Casing shape Sweeping, water cooling, precision cast aluminum alloy
  Control circuit   Rectangular:   Aluminum alloy
Connotation of
product model

1 options: A: DC PNP B: DC NPN C: AC working voltage
2 options: K: Normally open state output N: Normally closed state output E: Contact output

Appearance & dimension
