Solid State Relay SSR-1W 3W 5W
Products: Industrial sensor View: 2472Frequency
|
|
|
|
|

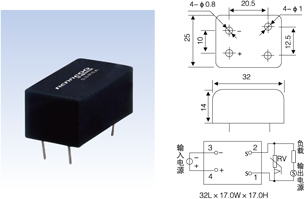

| Code of outline |
Appearance |
Size |
Technical Characteristics |
Order Parts No. | |
| SSR-1W 3W 5W |
 |
| Load voltage |
220VAC or 380VAC |
| Load current |
1A, 3A, 5A |
| Control voltage |
DC3-14V orDC3-32V |
| Control current |
6-35mA |
| On voltage |
<1.5V |
| Off leakage current |
<1.5mA |
| On-off time |
<10ms |
| Dielectric strength |
1500VAC |
| Insulation resistance |
500M/500VDC |
| Ambient temperature |
-25~+70 |
| Mounting methods |
Print formatP,C,B |
| The work insturctions |
/ |
| Weight |
29g | |
RE109370 | |
|
