SSR10-80A(Ordinary)
Products: Industrial sensor View: 2398Frequency
|
|
|
|
|

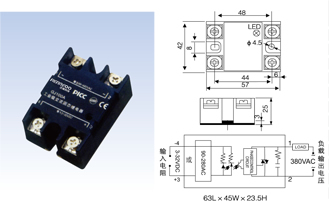

| Code of outline |
Appearance |
Size |
Technical Characteristics |
Order Parts No. | |
| SSR10-80A(ordinary type) |
 |
| Load voltage |
380VAC |
| Load current |
10A,20A,30A,40A, 60A, 80A |
| Control voltage |
3-32VDC or 90-280VAC |
| Control current |
10-40mA |
| On voltage |
<1.5V |
| Off leakage current |
<2mA |
| On-off time |
<10ms |
| Dielectric strength |
2500VAC NO,NC Bring out-radiator panels |
| Insulation resistance |
1000M /500VDC |
| Ambient temperature |
-30~+70 |
| Mounting methods |
Bolted fixed |
| The work insturctions |
LED |
| Weight |
100g | |
RE109500 | |
|
