GJ150-200ARL
Products: Industrial sensor View: 1947Frequency
|
|
|
|
|

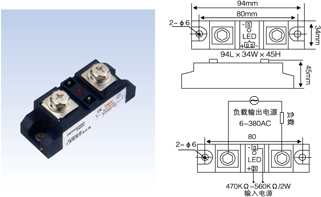

| Code of outline |
Appearance |
Size |
Technical Characteristics |
Order Parts No. | |
| GJ150-200ARL |
 |
| Load voltage |
0-380VAC |
| Load current |
150A, 200A |
| Control |
External potentiometer(470K-560K/2W) |
| Load voltage |
1-5VDC, 1-10DC |
| On voltage |
<1.5V |
| Off leakage current |
<2mA |
| On-off time |
/ |
| Dielectric strength |
2500VAC NO,NC Bring out-radiator panels |
| Insulation resistance |
1000M /500VDC |
| Ambient temperature |
-30~+75 |
| Mounting methods |
bolted fixed |
| The work insturctions |
LED |
| Weight |
220g | |
RE109340 | |
|
