GJ300-1000ARL
Products: Industrial sensor View: 1923Frequency
|
|
|
|
|
| Code of outline |

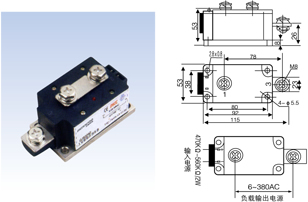

Appearance |
Size |
Technical Characteristics |
Order Parts No. | |
| GJ300-1000ARL |
 |
| Load voltage |
0-380VAC |
| Load current |
300A,400A,600A,800A,1000A |
| Control voltage |
1-5VDC, 1-10DC |
| Control |
External potentiometer(470K-560K/2W) |
| On voltage |
<1.5V |
| Off leakage current |
<2mA |
| On-off time |
/ |
| Dielectric strength |
2500VAC NO,NC Bring out-radiator panels |
| Insulation resistance |
1000M/500VDC |
| Ambient temperature |
-30~+75 |
| Mounting methods |
bolted fixed |
| The work insturctions |
LED |
| Weight |
890g, 1530g | |
