SSR3 10A-100A
Products: Industrial sensor View: 1828Frequency
|
|
|
|
|
| Code of outline |

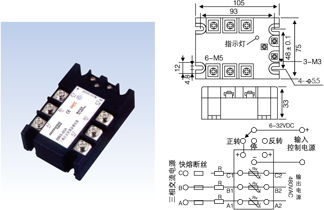

Appearance |
Size |
Technical Characteristics |
Order Parts No. | |
| SSR3 10A-100A(basic typ) |
 |
| Load voltage |
480VAC |
| Load current |
10A,20A,30A,40A,60A,80A,100A |
| Control voltage |
6-32VDC |
| Control current |
10-30mA |
| On voltage |
<2V |
| Off leakage current |
<10mA |
| On-off time |
Positive and negative space conversion>10ms |
| Dielectric strength |
2500VAC NO,NC Bring out-radiator panels |
| Insulation resistance |
1000M /500VDC |
| Ambient temperature |
-30~+75 |
| Mounting methods |
bolted fixed |
| The work insturctions |
Single LED,(red),(green) |
| Weight |
450g | |
RE109660 | |
|
