Characteristics

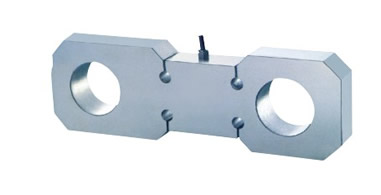

Board and ring type, thin wall and blind hole strucure Hight precision, strong anti-deflective loading. Goo shock resistance, simple to install. Moistureproof sealed ideal for hostile environment.

 Rated output (mV/V)

1.50-+0.010

 Nonlinearity

-+0.02%FS

Hysteresis

-+0.02%FS

 Repeatability

-+0.01%FS

 Creep (30minutes)

-+0.02%FS

 Zero baiance

-+1.00%FS

 Temperature effect on zero

-+0.02%FS/10

 Temperature effect on output

-+0.02%FS/10

 Input resistance

385-+10

 Output resistance

350-+3

 Insulation resistance

>5000M

 Excitation voltage

10V(DC/AC)

 Compensated temperature range

-10~+50

 Operating temperature range

-20~+60

 Safe overload

120%FS

 Cable

5.4X1m(5m)

 Materials

 Alloy steel

 Cable color code

Input: Red(+) Black(-)

Output: Green(+)White(-)
