Characteristics

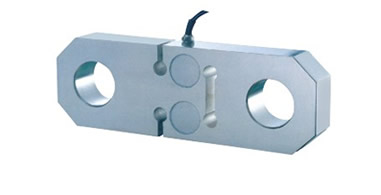

Typical plate ring type load cell, double shear beam blin hole structure. High accuracy, simple to install. Better sid force resistance compare with simple crane scale loa cell. Moistureproof seal, ideal for hostile environment.

 Rated output (mV/V)

2.00-+0.010

 Nonlinearity

-+0.02%FS

 Hysteresis

-+0.02%FS

 Repeatability

-+0.01%FS

 Creep (30minutes)

-+0.02%FS

 Zero baiance

-+1.00%FS

 Temperature effect on zero

-+0.02%FS/10

 Temperature effect on output

-+0.02%FS/10

 Input resistance

765-+15

 Output resistance

700-+5

 Insulation resistance

>5000M

 Excitation voltage

10V(DC/AC)

 Compensated temperature range

-10~+50

 Operating temperature range

-20~+60

 Safe overload

120%FS

 Cable

5.4X0.5m

 Materials

 Alloy steel

 Cable color code

 Input: Red(+) Black(-)

 Output: Green(+) White(-)
