Characteristics

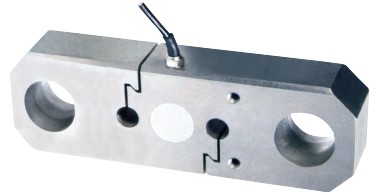

Typical plate-ring construction,good accuracy,easy to install,overload protection structure, high security and sied force resistance. Suitable for various crane,lifting machinery.

 Rated output (mV/V)

2.00-+0.010

 Nonlinearity

-+0.02%FS

 Hysteresis

-+0.02%FS

 Repeatability

-+0.01%FS

Creep (30minutes)

-+0.02%FS

 Zero baiance

-+1.00%FS

 Temperature effect on zero

-+0.02%FS/10

Temperature effect on output

-+0.02%FS/10

 Input resistance

385-+10

 Output resistance

350-+3

 Insulation resistance

>5000M

 Excitation voltage

10V(DC/AC)

 Compensated temperature range

-10~+50

 Operating temperature range

-20~+60

 Safe overload

120%FS

 Cable

5.4X6m

 Materials

 Alloy steel

 Cable color code

 Input: Red(+) Black(-)

 Output: Green(+) White(-)
