Characteristics

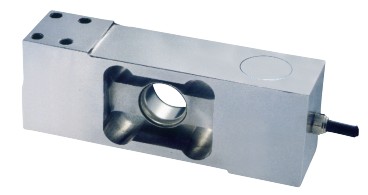

Stainless steel load cell, tri-beam welede seal structure, IP68, strain area is welede by thin stainless steel pipe. Strong four corner resistance. Corner adjusted before delivery to ensure consistent output in stated load plane. Suitable for high moistureproof electronic paltform scale, etc.

 Rated output (mV/V)

2.00-+0.010

 Nonlinearity

-+0.03%FS

 Hysteresis

-+0.03%FS

 Repeatability

-+0.01%FS

 Creep (30minutes)

-+0.02%FS

 Zero baiance

-+1.00%FS

 Temperature effect on zero

-+0.02%FS/10

 Temperature effect on output

-+0.02%FS/10

 Input resistance

385-+10

 Output resistance

350-+3

 Insulation resistance

>5000M

 Excitation voltage

10V(DC/AC)

 Compensated temperature range

-10~+50

 Operating temperature range

-20~+60

 Safe overload

120%FS

 Cable

5.4X6m

 Materials

 Stainless steel

 Cable color code

 Input: Red(+) Black(-)

 Output: Green(+) White(-)
