FV-1 Overload limiter


Products: Tension sensor   View: 2758Frequency

 Characteristics
A protection device of crane machinery on lateral meter, bride, gate, and shore tackle, etc. Specially used in electric block single point crane. Strong functions, Compact structure, easy operation and calibretion, stable working, convenient installation and maintain.
Micro computercontrolled modularezed construction, veracity and security in accordance with . Thisequipment hsa the functin ofaudilealarm, immediate alarm, cutting off thelifting way, and indicating lifting weight, etc, to avoid accidents by overload.

 Technical Characteristics

 With model FV-1
 Order Parts No. RE110210

 Specifications

1T/1.5T/2T/2.5T/3T/5T/6T/8T/10T

 System error

<-+3%F.S.

 Way of alarm

acousto-optic

 Static strength

150%F.S.

 Buzzer sonority

>75dB

 Operating temperature

-20~+60

 Operating humidity

45~95

 Operating voltage

DV-1;AC36V-+15%,50/60Hz

 Contact capacity of a relay

10A 227VAC

 Capacity

12A 125VAC

 Overall power consumption

2W

 Vibration acceleration

<5g

 Protection class

crane limiter IP44, load cell IP65

 Indicator

0.56Inch pipe with 4 red digits

 Materials

 Alloy steel

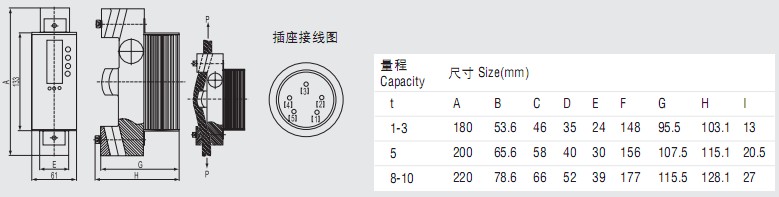

 Appearance and Dimension(mm)


Entry time: 2010-12-21 13:17:24
