Characteristics

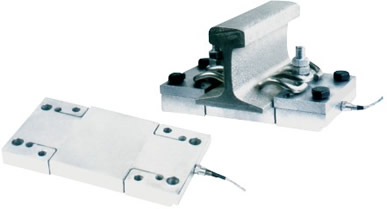

Simulate the sidth of rai l, special construction and techniques, greatly prolong its endurance life. Well sealed to work easily in hodtile environment. Suitable for kinds of rails.

 Rated output (mV/V)

2.00-+0.010

 Nonlinearity

-+0.05%FS

 Hysteresis

-+0.05%FS

 Repeatability

-+0.02%FS

 Creep (30minutes)

-+0.02%FS

 Zero baiance

-+1.00%FS

 Temperature effect on zero

-+0.02%FS/10

 Temperature effect on output

-+0.02%FS/10

 Input resistance

760-+15

 Output resistance

700-+3

 Insulation resistance

>000M

 Excitation voltage

10V(DC/AC)

 Compensated temperature range

-10~+50

 Operating temperature range

-20~+60

 Safe overload

120%FS

 Cable

6X15m

 Materials

 Alloy steel

 Cable color code

 Input: Red(+) Black(-)

 Output: Green(+) White(-)
