FA-1D Portable wireless aluminum crane scale


Products: Tension sensor   View: 2703Frequency

Characteristics

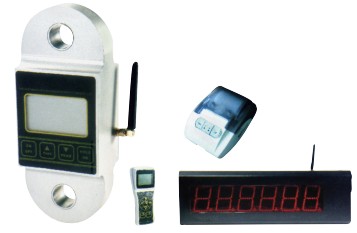

FA-1D is a portable wireless crane scale, with the material of high quality aluminum. the loading part is nested with high strength stainless ring, to prolong its service time. it uses chargeable lithium battery as power supplierand could be applied togeter with handset, wireless large screen, and wireless printer. It has complete functions, multiple units to be chose and suitable in all test environments.

 Technical Characteristics

 With model FA-1D
 Order Parts No. RE110280

 Accuracy

3000d

 Nonlinearity

<-+0.2%FS

 Repeatability

<-+0.2%FS

 Creep (30minutes)

<-+0.1FS/30

 Temperature effect on zero

<-+0.01FS

 Temperature effect on output

<-+0.01FS

Compensated temperature range

0~50

Operating temperature range

0~60

 Safe overload

200%FS

 Ultimate overload

500%FS

 Recommend excitation

3.7V

 Maximum transmission distance

100h

 Indicator

76/127/203

 Power for indicator

AC 220V 50Hz

 Life for energy

100h

 Protection class

IP65

 Materials

 Aluminum

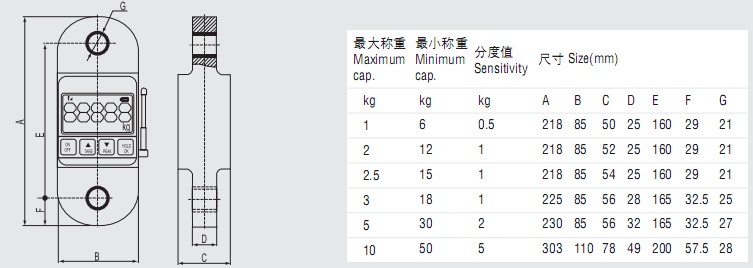

 Appearance and Dimension(mm)


Entry time: 2010-12-21 13:36:18
