Features
- Virous of actuators, the operation position is adjustable (such as EC-7121)
- Outer shell covered with intensive plastic, water-proof and oil-proof. The mechanical strength is better than EM type of micro swith, bear hitting
Ratings
|
Rated
voltage
|
Noninductive Load (A)
|
nductive Load (A)
|
|
Resistance Load
|
Lamp Load
|
Inductive Load
|
Motor Load
|
|
NC |
NO |
NC |
NO |
NC |
NO |
NC |
NO |
|
125VAC
250VAC
480VAC |
10
10
3 |
3
2.5
1.5 |
1.5
1.25
0.75 |
10
10
2.5 |
5
3
1.5 |
2.5
1.5
0.75 |
|
8VDC
14VDC
30VDC
125VDC
250VDC |
10
10
8
0.5
0.25 |
3
3
3
0.4
0.2 |
1.5
1.5
1.5
0.4
0.2 |
6
6
6
0.05
0.03 |
6
6
5
0.05
0.03 |
5
5
2.5
0.05
0.03 |
Characteristics
| Operation speed |
0.5mm-50cm/sec |
Operating frequency |
Mechanical: 120 operations/minute Electical: 30 operations/minute |
Contact resistance |
15m max. |
IInsulation resistance |
100m above(at 500VDC) |
Dielectric strength |
1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity |
1500VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts |
1500VAC, 50/60 Hz for 1 minute between each terminal and ground |
| Vibration |
Action 10 to 55Hz,1.5mm pairs swing |
| Shock |
Mechanical:Approx.1000m/Sec2(about 100g's)
Electrical:Approx.300m/Sec2(about 30g's) |
| Ambient temperature |
-10~+80 |
| Humidity |
< 95% RH |
| Life |
Mechanical: 10,000,000 operations above (under rated OT)
Electrical: 500,000 operations above |
| Weight |
About 60g |
| Degree of protection |
IP40 |
Operating Characteristics
|
Models |
EC-7100 |
EC-7110 |
EC-7310 |
EC-7311 |
EC-7312 |
EC-7120 |
EC-7140 |
EC-7121 |
EC-7141 |
EC-7124 |

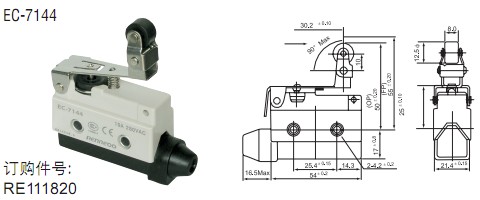

EC-7144 |
EC-7166 |
|
OF(Max.) |
600g |
600g |
600g |
600g |
600g |
150g |
220g |
180g |
240g |
200g |
280g |
120g |
|
RF(Min.) |
100g |
100g |
100g |
100g |
100g |
40g |
60g |
50g |
80g |
60g |
100g |
|
|
PT(Max.) |
2.0mm |
2.0mm |
2.0mm |
2.0mm |
2.0mm |
13.5mm |
8.5mm |
11.0mm |
6.5mm |
11mm |
6.5mm |
250mm |
|
OT(Min.) |
0.8mm |
5.0mm |
6.0mm |
6.0mm |
6.0mm |
4.0mm |
2.5mm |
3.0mm |
2.0mm |
3.0mm |
2.0mm |
11mm |
|
MD(Max.) |
0.8mm |
0.8mm |
0.8mm |
0.8mm |
0.8mm |
3.2mm |
2.0mm |
2.4mm |
1.5mm |
2.4mm |
1.5mm |
|
|
OP |
30.5+-0.8mm |
44+-1.2mm |
21.8+-1.2mm |
33.3+-1.2mm |
33.3+-1.2mm |
25+-1mm |
25+-1mm |
40+-1mm |
40+-1mm |
50+-1.2mm |
50+-1.2mm |
|
|
FP |
|
|
|
|
|
35mm |
32mm |
|
46mm |
|
56mm |
|
|
